Stack

Equipment:

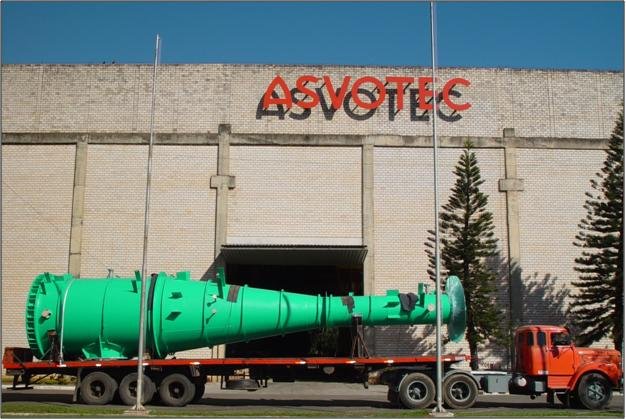

Incinerator's stack Item nr. F- 231302

Project/Construction:
ASME STS-1-2000
API/NBR 6123

Technical Characteristics:
Internal Diameter: 2.437 x 900 x 750 mm
Total Length: 40.800 mm
Thicknesses Back side: 31,5/25,4/19,0mm
Thickness Cover: 19,0 mm
Net weight Stack: 50.860 kgs.
Net weight refracted Stack: 74.470 kgs.
Material: SA-516-70
Working position: Vertical
