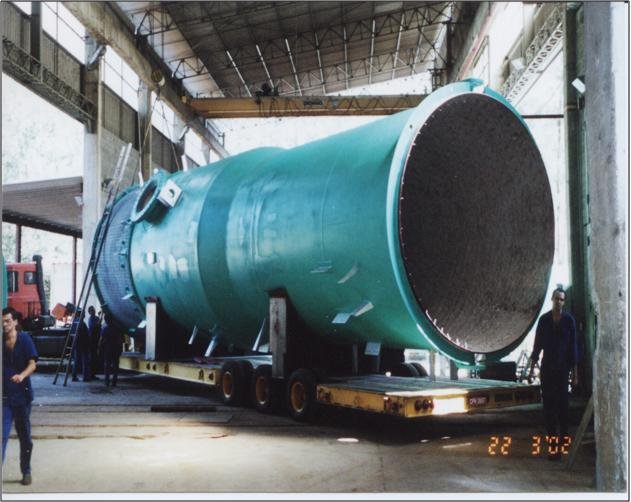

Orifice Chamber

camara orificio

Equipment:
Orifice chamber Tag. nr.º V-22020

Project/Construction:
ASME Sec. VIII-DIV. 1

Technical Characteristics:
Internal Diameter: 3860 x 1870 mm
Total Length: 27.436 mm
Thickness Back side/Cone: 25,0/19,0 mm
Net weight: 123.000 kgs.
Material: SA-516-70/SA-240-304
Working position: Vertical
