asstec mont enBy means of experienced and multidisciplinary technical team, Asvotec has skilled professionals who carry out services of assembly supervision, commissioning, startup and training of personal, expert opinions, studies for processes' improvement in the field, as well as technical support to other business units through active post-sales.

chamine dos secadores

Equipment:
Dryer's stack Tag. nr.º 50-2401

Project/ Construction:
ASME Sec. VIII-DIV. 1 Ed. 1998 Ad. 1999
API/NBR 6123

Technical characteristics:
Total length: 55.300 mm
Net weight. Stack: 70.197 kg.
Net weight. Refracted stack: 129.000 kg.
Material: SAC-50
Working position: Vertical

Supplying year: 2001

conversor unidade de craqueamento catalitico

Equipment:
Converter – Catalytic Cracking Unit

Project/ Construction:
ASME Sec. VIII-DIV. 1 Ed. 1998 Ad. 2000

Technical characteristics:
Project pressure: 2,53 kgf/cm² (G)
Project temperature: 570 º C
Internal Diameter.: 4.500 mm
Length.l: 14.2880/25.480 mm
Weight: 81.000 kgf.
Material: SA-516-60
Working position: Vertical

Supplying year: 2002

sistema de flare tail gas

Equipment:
Flare System for Tail Gas - Model FAU-100

Project/ Construction:
ASME Sec. VIII-DIV. 1 Ed. 1998 Ad. 01 ad.03

Technical characteristics:
Total length: 45.720 mm
Weight: 42.000 kg.
Pilot nr.: 04
Ignition and control panel

Supplying year: 2005

forno de aquecimento de agua

Equipment:
Water Heating Furnace F-51250 A/B/C

Project/ Construction:
ASME Sec. I Ed. 2001 Ad. 2002
API 560 and API 530
Automation Project

Technical characteristics:
Total length: 20.433 mm
Net weight: 67.300 kgf.
Material: SA-285-C/SA-516-60
Fuel: Crude oil/Diesel
Working position: Vertical

Supplying year: 2004

torre da

Equipment:
Tower DA-201A, DA-203A, DA-206N

Project/ Construction:
ASME Sec. VIII, Division 1- 2004 Ad. 2005

Technical characteristics:
Length: 35.500 mm, 29.064 mm, 28.850 mm.
Net weight:149.115 kgf, 139.000 kgf, 35.500 mm.
Material: SA-516-60
Working position: Vertical

Supplying year: 2006

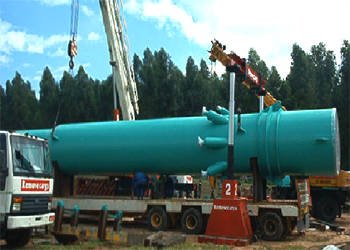

riser

Equipment:
Riser R-22001

Project/ Construction:
ASME Sec.VIII Division 1 Ed.1996

Technical characteristics:
Total length: 60.000 mm
Net weight: 160.000 kgf.
Material: SA-516-70
Working position: Vertical

Supplying year: 2002

ground flare

Equipment:
Ground Flare TA.360301

Burner quantity: 34
Burning stages: 04
Ignition and control panels.
Metallic structure for protection against radiation.

Technical characteristics:
Installed area: 30 x 36 m.
Net weight: 100.000 kgf.
Material: Carbon steel/stainless steel.

Supplying year: 2004
